Custom LED Driver & Light Control Industrial Design
For LED Module reliability, long lifetime, and precise performance.
Custom LED modules often require specific electrical and control characteristics that standard, off-the-shelf drivers and controllers cannot provide. This is especially true for high-power constant current modules, operating at currents above 1000 mA or at voltages between 50 V and 270 V, where electrical stability, thermal behavior, and safety must be carefully engineered.
Many applications also require advanced lighting control, such as ON/OFF switching, dimming, dynamic white tuning, color control (RGB/RGBW), or even fast flashing up to 1000 Hz. Controls may be implemented per module, per LED group, or per individual LED—depending on the needs of the project. We support numerous control protocols, including SCADA, Arduino, Casambi, DALI, DMX, KNX, 0-10V, and more.
A custom LED driver or controller can integrate all required intelligence either on-board or on a dedicated control PCB. With our professional industrial design process, your LED module will operate efficiently, safely, and precisely according to your application requirements.
Design for Performance
With hundreds of high-power LED systems designed over the past two decades, we have the experience and technical depth required to develop custom LED drivers, custom LED controllers, and combined driver-control systems that ensure the optimal performance of the LED modules we design.
During the design process, we evaluate all relevant performance criteria, define the exact specification values, and select the components that best meet them. This results in a highly optimized, manufacturable driver or control system that delivers predictable, long-term performance.
Technical Characteristics We Consider
We evaluate all key technical parameters that define the specifications and use-case of a custom LED Driver or Control System—including, electrical characteristics, efficacy, lifetime, control options, thermal limits, form factor and protection rating—to ensure the design precisely matches the requirements of your application. Below a non-exhaustive list:
01
LED Driver Type
Constant current, constant voltage, safety-focused
03
Constant voltage range
2 V to 270 V
05
Control type
Single channel, multi-channel (TW, RGB, RGB+W, RGB+W+WW)
07
Control protocol
SCADA, Arduino, Casambi, DALI, DMX, KNX, 0-10V
02
Constant current range
20 mA to 5000 mA
04
Dimming Capability
Analog dimming, digital dimming, linear dimming, PWM dimming
06
Control Addressability
Module level, LED group level, individual LED level
08
Standards
safety, EMC, RoHS, UL
Sample Custom Designs
Starter Design Package
(Custom LED Driver)
Our Starter Design Package covers the major elements required to develop a professional, manufacturable custom LED driver. It provides a complete, technically mature foundation that many projects can directly build upon.
from 15,000 €*
Starter Package Includes
1 / Requirements Gathering & Specification Definition
We define performance targets (current, voltage, dimming, lifetime, thermal limits, enclosure size), project constraints (budget, timeline, certification needs), and industry-specific requirements.
2 / Component Selection
We evaluate electronics technologies and components from leading suppliers using manufacturer tools and engineering data.
3 / Electronic & Mechanical Engineering
We design the electronic circuitry, PCB, and enclosure for DFM efficiency, using materials and components optimized for cost and performance.
4 / Design for Manufacturing (DFM)
Covers electronic design, mechanical integration, PCB layout, manufacturability optimization, product technical data and design file. 50 Hours of DFM are included in the starter design package.
5 / Design for Certification & Compliance
Design according to standards (safety, EMC, RoHS, etc.) if required.
* Package Limitations
The Starter Design Package covers all major foundations for most custom projects, but it does not guarantee final design completion. Additional work may be required depending on complexity.
Extensions can be purchased through:
• Additional Starter Design Package(s), or
• Extra Design for Manufacturing (DFM) hours at 300 € per hour
Terms & Conditions apply.
Starter Design Package
(LED Controller with Group Addressability)
Our Starter Design Package covers the major elements required to develop a professional, manufacturable custom LED controler without individual addressability. It provides a complete, technically mature foundation that many projects can directly build upon.
from 22,500 €*
Starter Package Includes
1 / Requirements Gathering & Specification Definition
Control protocol, dimming method, addressing structure, functional logic, thermal and safety constraints.
2 / Component Selection
Evaluation of MCU, communication chips, power components, and interface hardware.
3 / Electronic & Mechanical Engineering
We design the electronic circuitry, PCB, and enclosure for DFM efficiency, using materials and components optimized for cost and performance.
4 / Design for Manufacturing (DFM)
DFM-oriented PCB and enclosure design. 75 Hours of DFM are included in the starter design package.
5 / Design for Certification & Compliance
Design according to standards (safety, EMC, RoHS, etc.) if required.
* Package Limitations
The Starter Design Package covers all major foundations for most custom projects, but it does not guarantee final design completion. Additional work may be required depending on complexity.
Extensions can be purchased through:
• Additional Starter Design Package(s), or
• Extra Design for Manufacturing (DFM) hours at 300 € per hour
Terms & Conditions apply.
Starter Design Package
(LED Controller with Individual Addressability)
Our Starter Design Package covers the major elements required to develop a professional, manufacturable custom LED controler with individual addressability. It provides a complete, technically mature foundation that many projects can directly build upon.
from 30,000 €*
Starter Package Includes
1 / Requirements Gathering & Specification Definition
Define addressing level (module, LED group, individual LED), protocol, syntax, electrical and thermal specs.
Control protocol, dimming method, addressing structure, functional logic, thermal and safety constraints.
2 / Component Selection
Evaluation of high-complexity control components and communication systems, MCU, communication chips, power components, and interface hardware.
3 / Electronic & Mechanical Engineering
We design the enclosure, firmware, and communication architecture, electronic circuitry and PCB for DFM efficiency, using materials and components optimized for cost and performance.
4 / Design for Manufacturing (DFM)
Advanced layout, logic, routing, manufacturability, documentation, and file preparation. 100 Hours of DFM are included in the starter design package.
5 / Design for Certification & Compliance
Design according to standards (safety, EMC, RoHS, etc.) if required.
* Package Limitations
The Starter Design Package covers all major foundations for most custom projects, but it does not guarantee final design completion. Additional work may be required depending on complexity.
Extensions can be purchased through:
• Additional Starter Design Package(s), or
• Extra Design for Manufacturing (DFM) hours at 300 € per hour
Terms & Conditions apply.
Deliverables

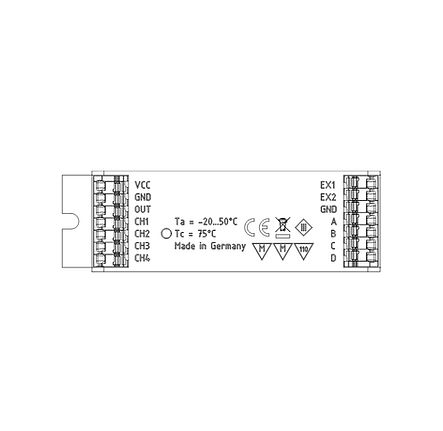

The design package delivers the LED driver or controller technical drawing and specifications, optimized for manufacturing reliability. It provides a proven, production-ready foundation that enables you to advance smoothly to prototyping.
Ready to start your custom driver or controlled design?
Contact us today to discuss your project requirements.
